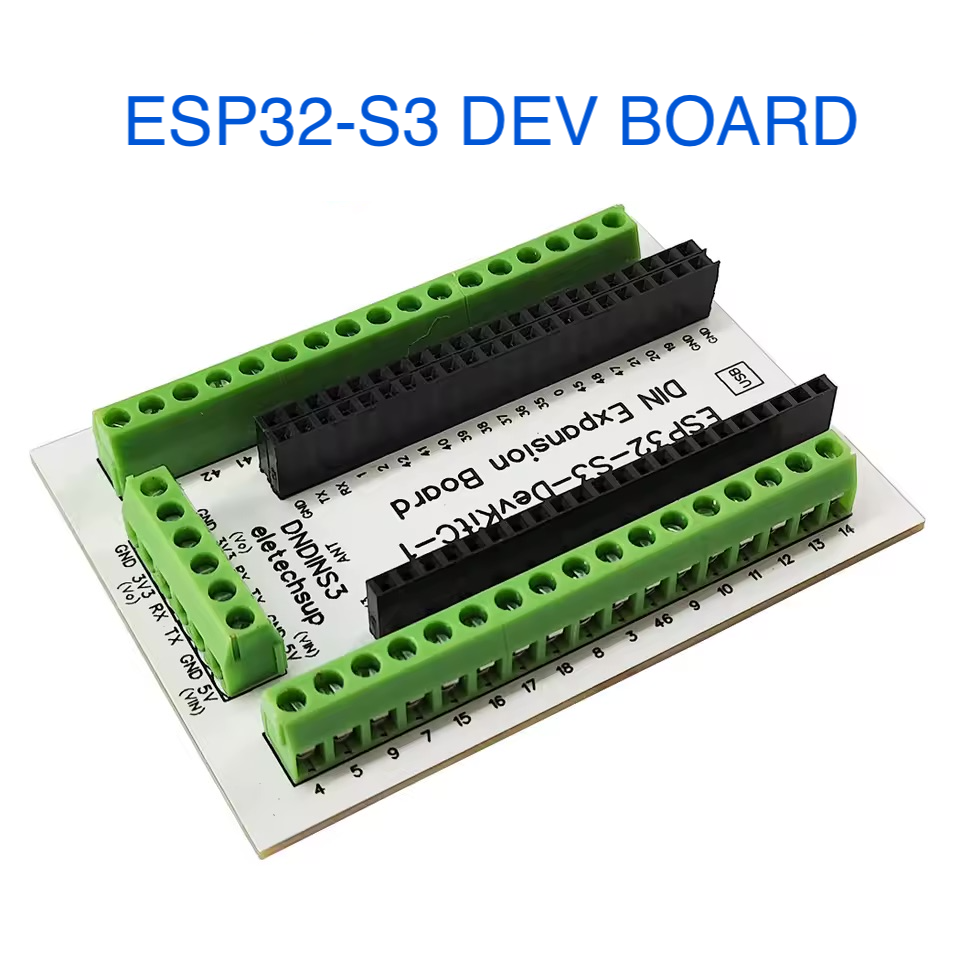

ESP32-S3 Breakout Development Project Board (PCB Only)

  • £18.99

Only 3 left!

A no-soldering development board for the ESP32-S3 chipset. Use as a test-bed for your espressif programming or program with the wonderful ESPHome to make easy add-ons for your Home Assistant system. All essential pins are connected to screw terminals or pin headers. Easily connect to displays, relays, sensors, LED strips etc. For use with the ESP32-S3 44 pin ONLY and supports board width of 25.4mm or  28mm

ESP32-S3 board is not included!

Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
Size: 80 *58 * 9mm(only Board),95 *61 * 35mm(with Rail Box)
Weight: 41g(only Board),96g(with Rail Box)

Lead out all pins(Except RST pin)
