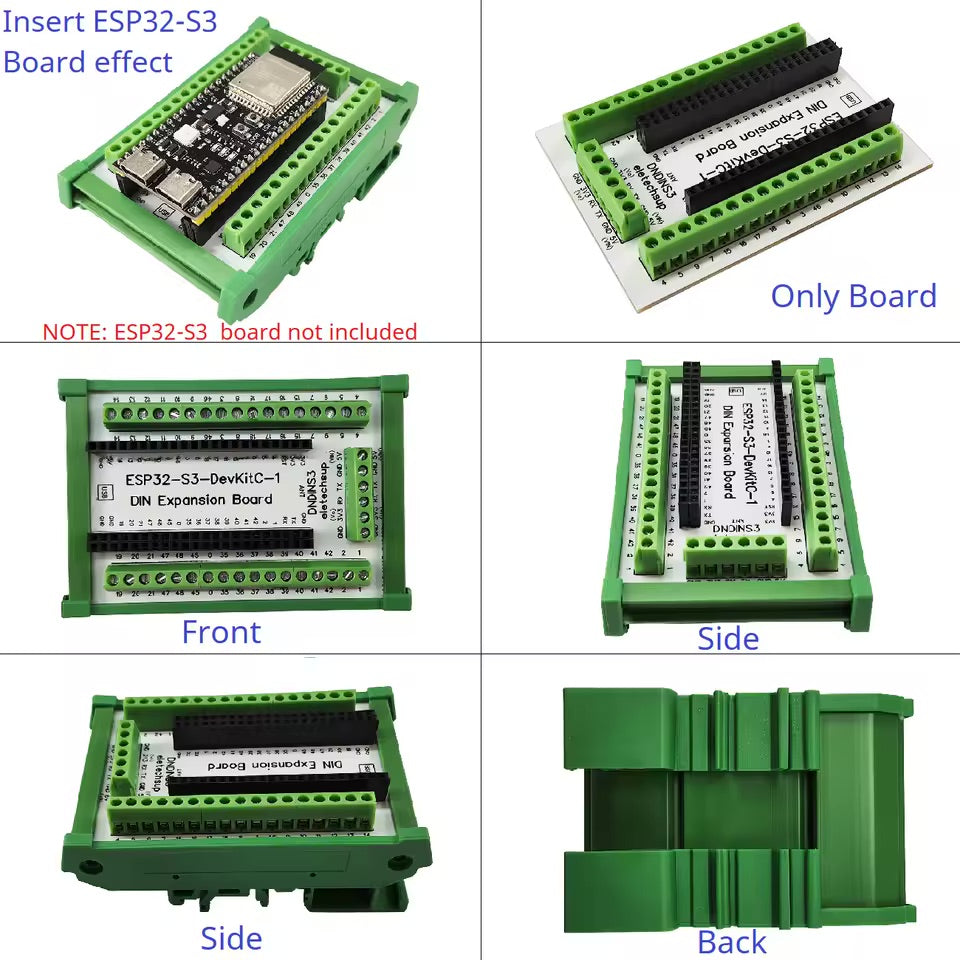

ESP32-S3 Breakout Development Project Board (DIN RAIL MOUNT)

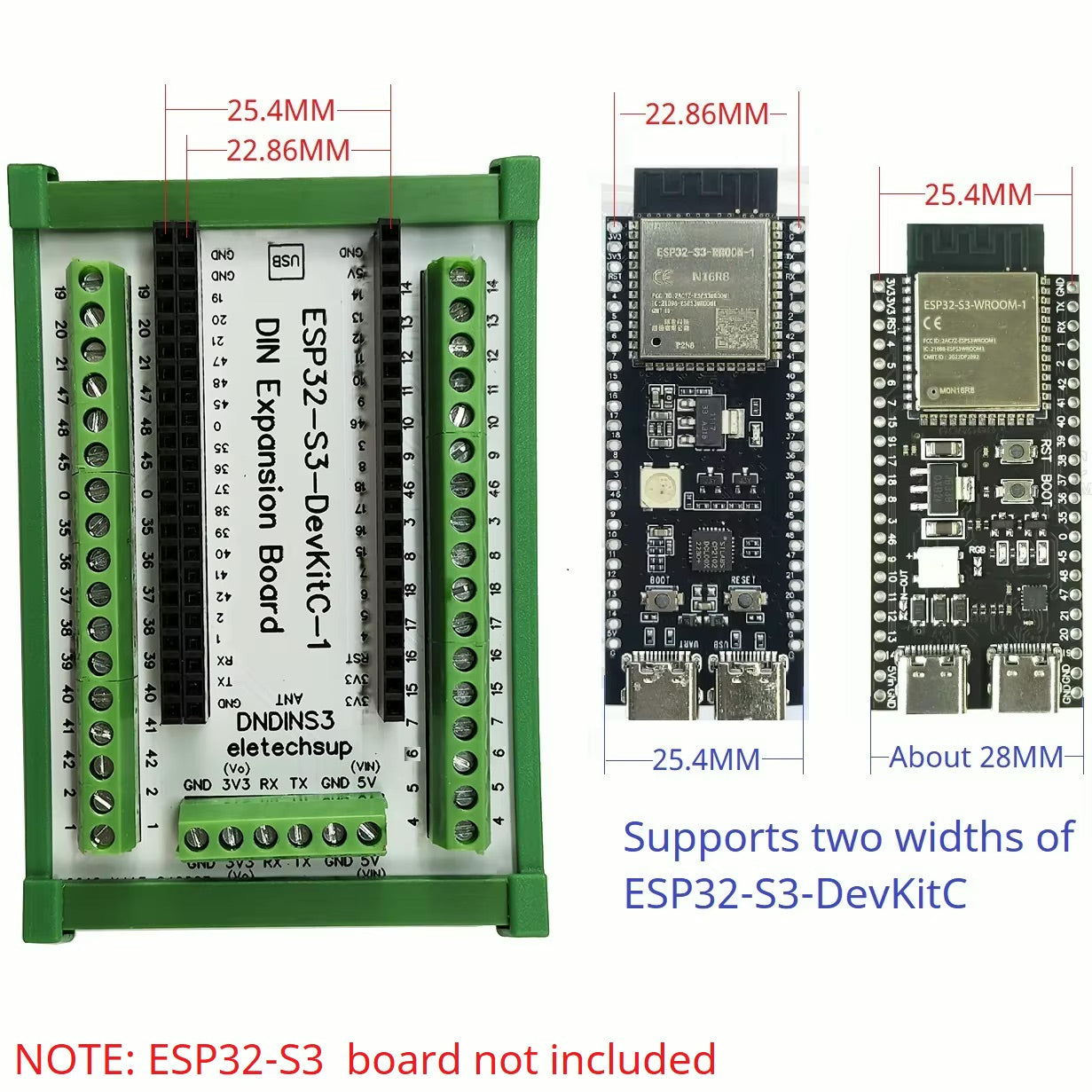

A no-soldering development board for the ESP32-S3 chipset. Use as a test-bed for your espressif programming or program with the wonderful ESPHome to make easy add-ons for your Home Assistant system. All essential pins are connected to screw terminals or pin headers. Easily connect to displays, relays, sensors, LED strips etc. For use with the ESP32-S3 44 pin ONLY and supports board width of 25.4mm or 28mm
Supplied in a DIN Rail Carrier
ESP32-S3 board is not included!
Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
Size: 80 *58 * 9mm(only Board),95 *61 * 35mm(with Rail Box)
Weight: 41g(only Board),96g(with Rail Box)

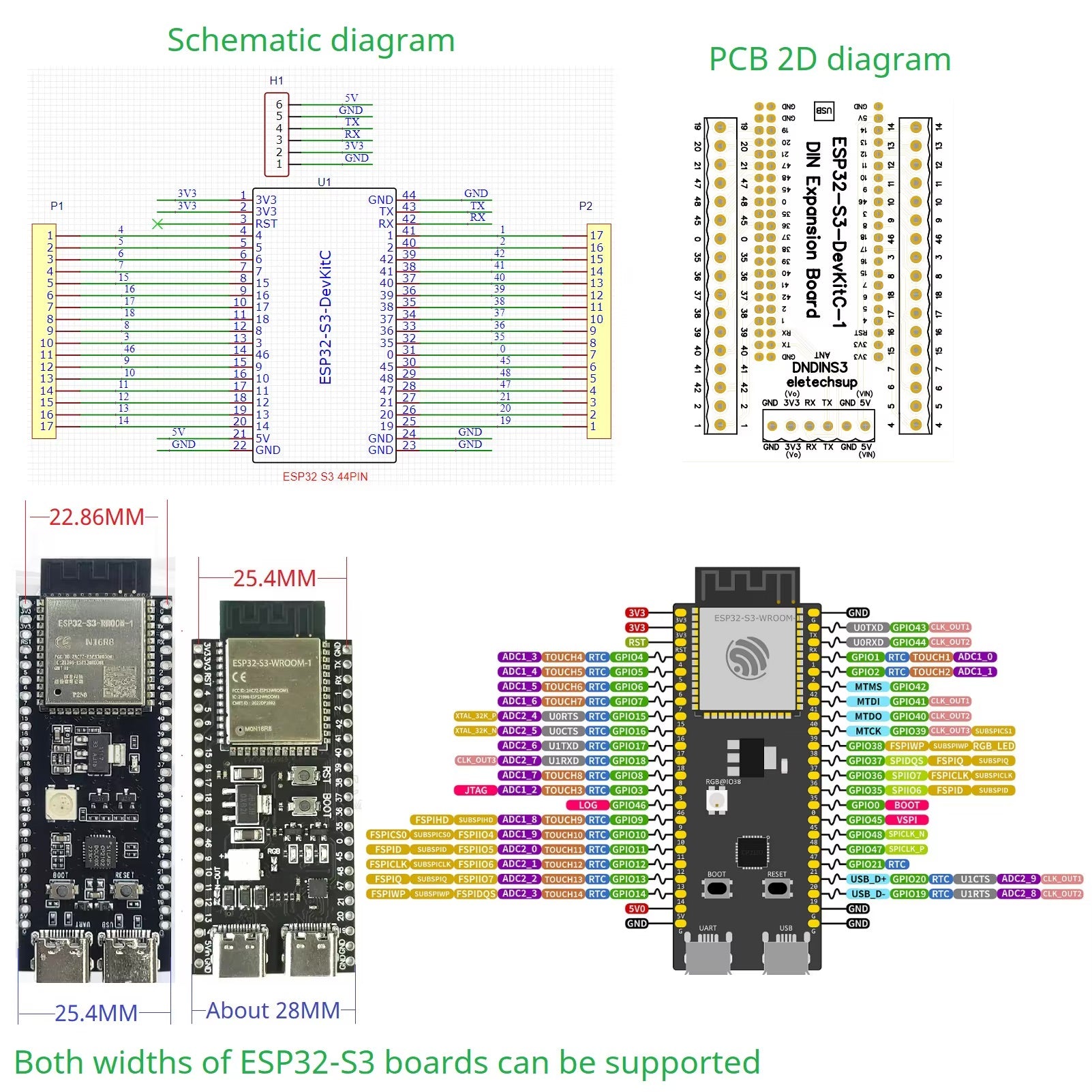

Lead out all pins(Except RST pin)

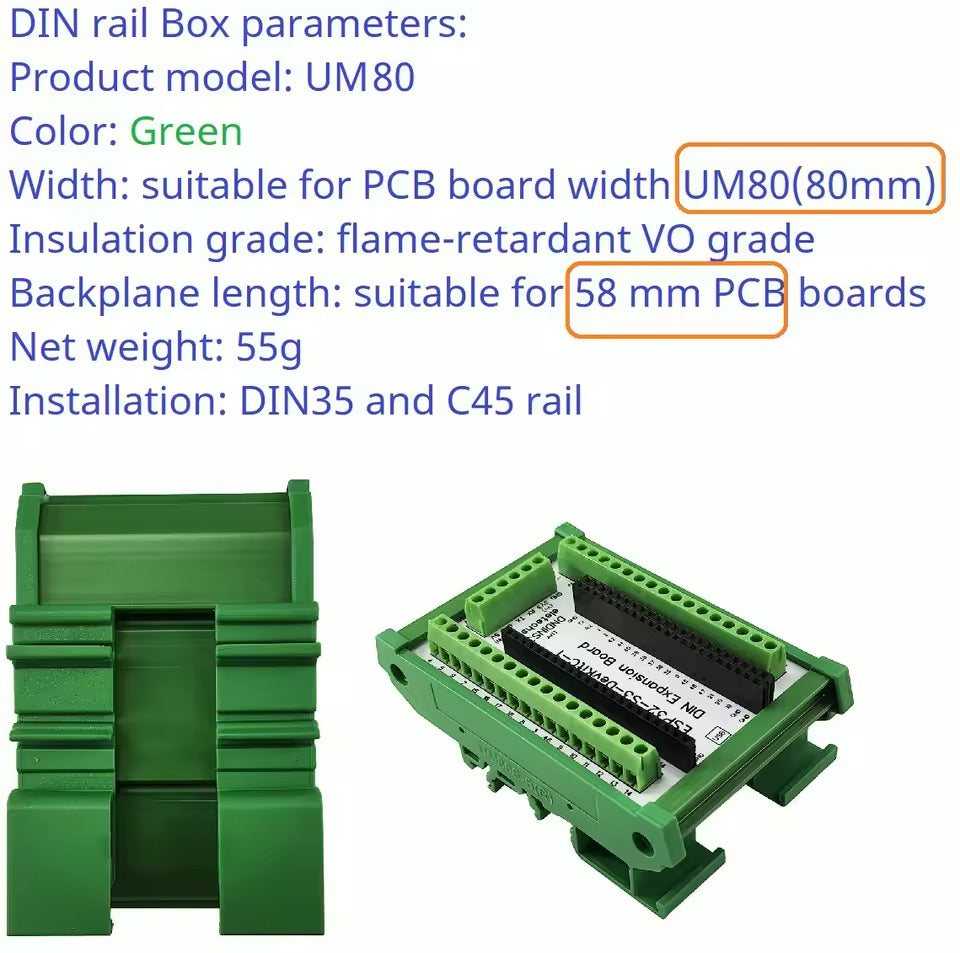

DIN rail Box parameters:
Product model: UM80
Color: Green
Width: suitable for PCB board width UM80(80mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58 mm PCB boards
Net weight: 55g
Installation: DIN35 and C45 rail
